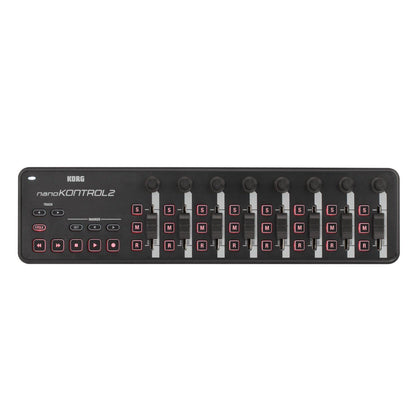

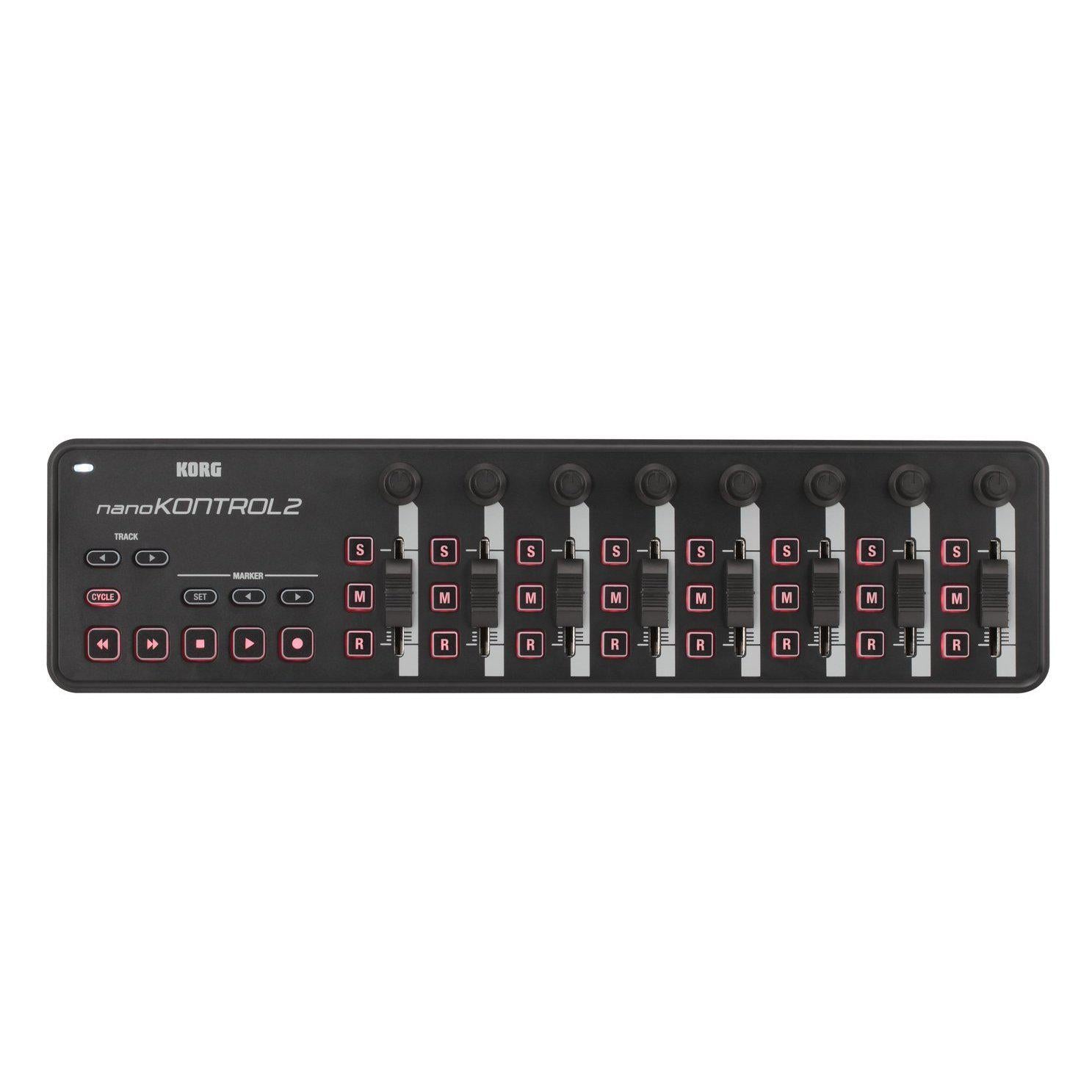

Korg Nanokontrol2 Black

nanoKONTROL2 Slim-Line USB Control Surface

• Low-profile, multi-function control surface
• New track select and marker advance parameters
• Supports numerous software titles including major DAW programs

Convenient, compact control surface, with easy setup for immediate use

In a body proportioned to fit perfectly in front of your laptop computer, the nanoKONTROL2 provides eight channels of the controllers you need to control your music software. The nanoKONTROL2 also features a dedicated transport control section. The buttons have been carefully selected to be useful with your software, ensuring simple and intuitive control. Many software titles – including major DAW programs – are supported, dramatically reducing the need to make complicated connection settings.

Complete control for your DAW or software synthesizer

A knob, fader, and three switches are provided for each of the eight channels, respectively assigned to pan, volume, and solo/mute/record. This arrangement is a real convenience when recording automation for multiple channels. There's also a marker button, making it easy to assign marks at important points in your song for more efficient recording and song production. When using a software synthesizer, you can assign parameters to the desired controllers for easy control. For example you could use the faders to control the ADSR of an envelope generator, and use the knobs to control the filter's cutoff frequency and resonance, etc.

Korg Kontrol Editor software

The nanoKONTROL2 works with the "Korg Kontrol Editor" software – available free on the Korg website. Load it into your computer, and use it to make detailed customized settings. For example, the minimum and maximum values for each control change message can be specified.

USB power for an uncluttered setup

Just connect a single USB cable from your computer to the nanoKONTROL2, and you've got a quick and portable music production system. Power and USB-MIDI data travels down the same wire for a clean, efficient workspace.

nanoKONTROL2 specifications

Controllers:

• 8 knobs
• 8 sliders
• 24 buttons
• Transport buttons: REW/FF/STOP/PLAY/REC
• CYCLE button
• MARKER button
• TRACK button

Corresponding Software:

Avid Pro Tools/Apple Logic, GarageBand/MOTU Digital Performer/Steinberg Cubase/Ableton Live/Cakewalk SONAR

Software that can be controlled by control change message

Connections:

mini-USB

Power:

USB bus power

Power Consumption:

USB bus power: less than 100 mA

Dimensions:

• Size (W x D x H): 325 x 83 x 30 mm/ 12.80 x 3.27 x 1.18 inches
• Weight: 293 g/ 0.65 lbs.
• Accessories: USB cable
