Ny generation af avanceret delay-pedal med enestående lydkvalitet og enorm kreativitet.

Highlights

• Studie-level stereolyd med 32-bit/96 kHz processing hele vejen igennem.
• 12 alsidige delay-modes fra vintage til modern giver uendelige kreative muligheder
• Real-time expression med skræddersyede kontrolindstillinger for onboard og eksterne switches
• Grafisk LCD for enkel, intuitiv betjening under performance og editering
• Onboard patch memories og hands-on controls
• Indbygget Phrase Looper, MIDI, USB og mere
• Skift mellem buffered eller true-bypass betjening
• Runs on four AA-size batteries or PSA-series AC adapter

Fuld beskrivelse

Fantastisk lyd og kreativ power

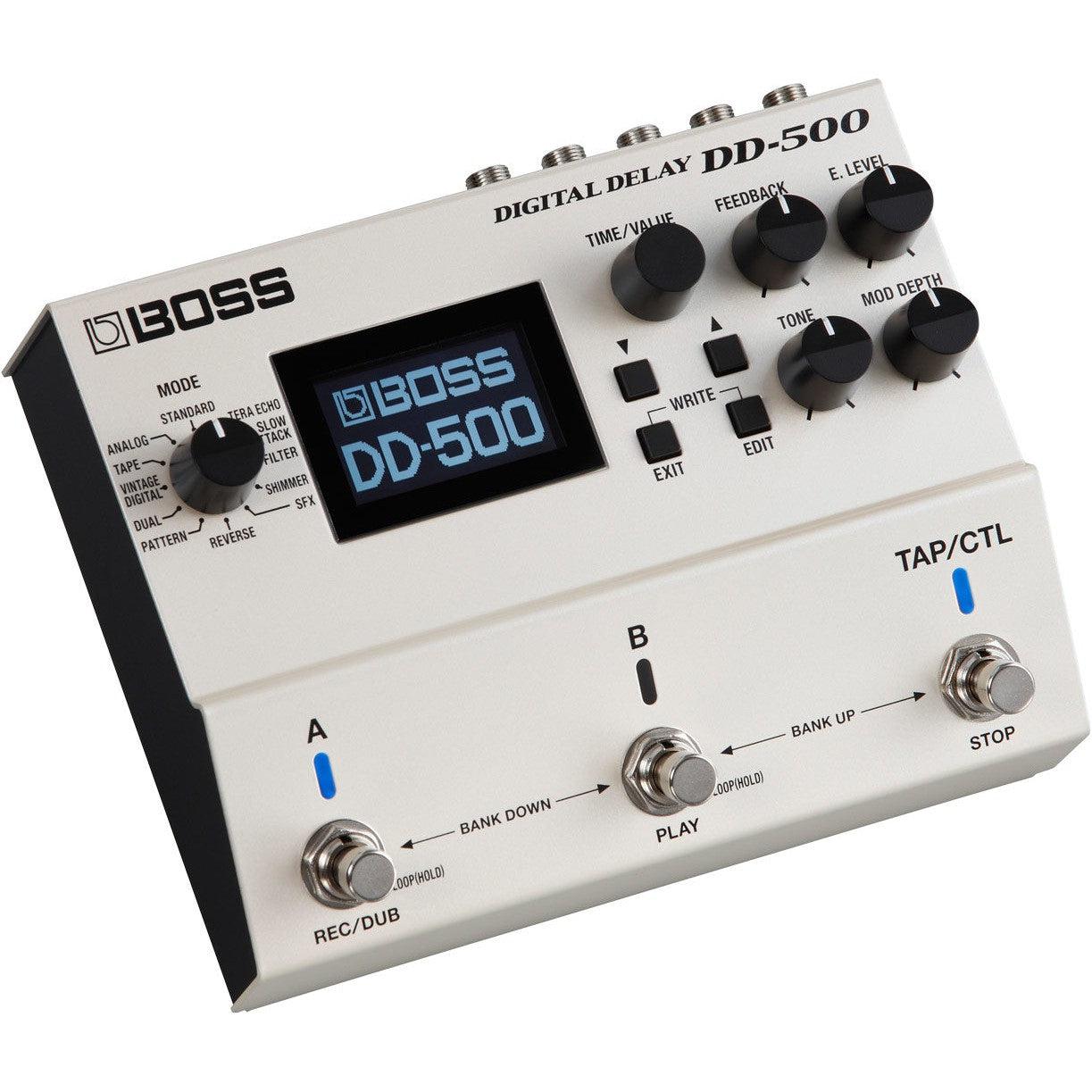

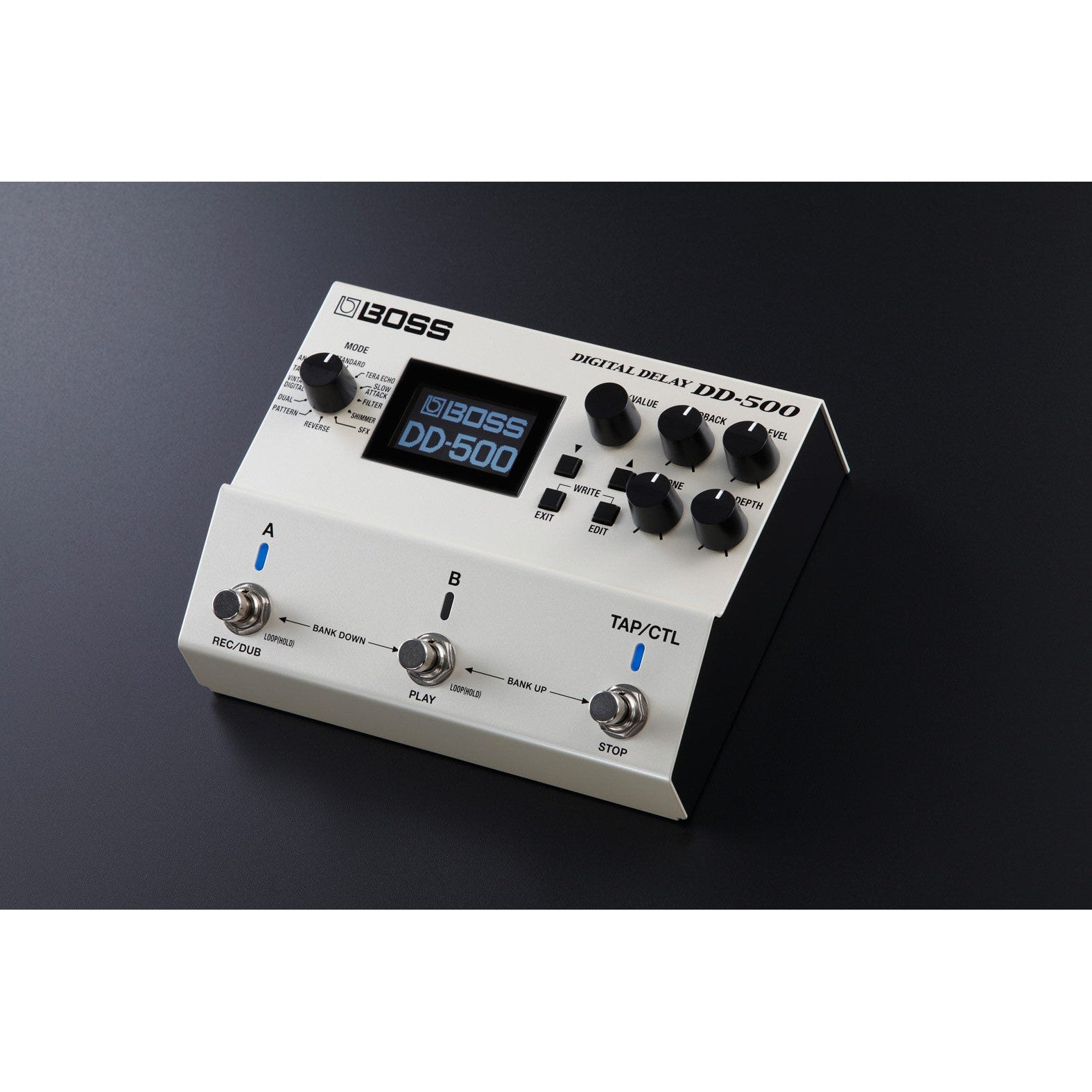

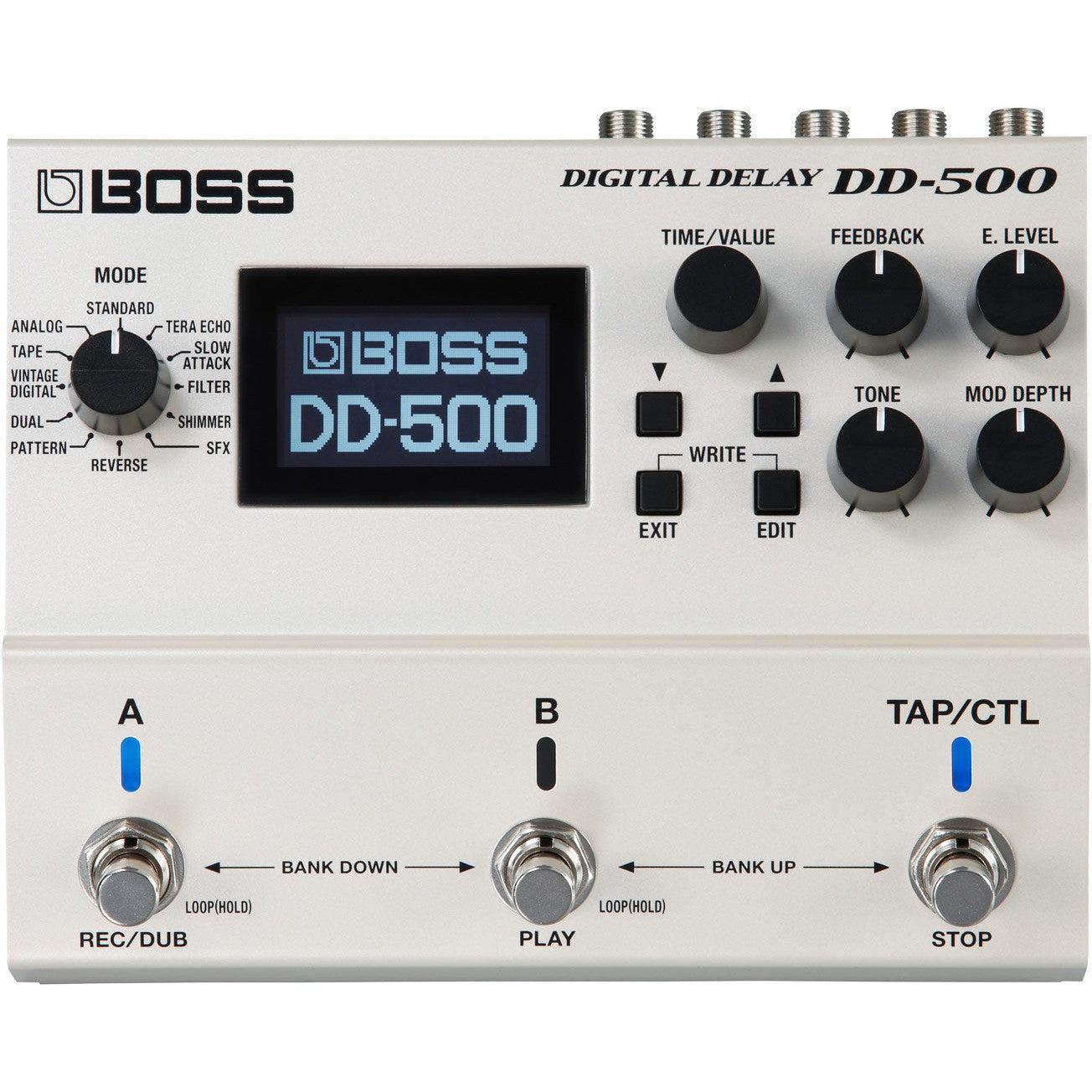

DD-500 er spækket med nyudviklet BOSS-teknologi og er vores mest powerfulde og alsidige delay effektpedal nogensinde. Denne lydskabende toolbox giver dig 12 karakteristiske delay-modes med super lydkvalitet og omfattende editeringsmuligheder, et grafisk display, patch memories, MIDI og meget mere. DD-599 får fra almindelig echo til præcise emuleringer af klassiske delays og lækre spatialteksturer.

Specifikationer

Sampling Frequency
96 kHz

AD/DA Conversion
32 bits

Processing
32-bit floating point

Delay Modes
STANDARD
ANALOG
TAPE
VINTAGE DIGITAL
DUAL
PATTERN
REVERSE
TERA ECHO
SLOW ATTACK
FILTER
SHIMMER
SFX

Maximum delay time
10 sec.(depends on delay mode)

Phrase loop
60 sec. (96 kHz/MONO, 48 kHz/STEREO)
120 sec. (48 kHz/MONO)
Delay can be applied.

Patches
198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])

Pedals
Foot switch x 3 [A][B][TAP/CTL]

Knobs
MODE
TIME/VALUE
FEEDBACK
E.LEVEL
TONE
MOD DEPTH

Display
Graphic LCD (128 x 64 dots, backlit LCD) x 1

Nominal Input Level
INPUT A/MONO, B: -10 dBu

Maximum Input Level
INPUT A/MONO, B: +8 dBu

Input Impedance
INPUT A/MONO, B: 1 M ohm

Nominal Output Level
OUTPUT A/MONO, B: -10 dBu

Maximum Output Level
OUTPUT A/MONO, B: +8 dBu

Output Impedance
OUTPUT A/MONO, B: 2 k ohms

Recommended Load Impedance
OUTPUT A/MONO, B: 20 k ohms or greater

Bypass
Buffered bypass or True bypass (with relays)

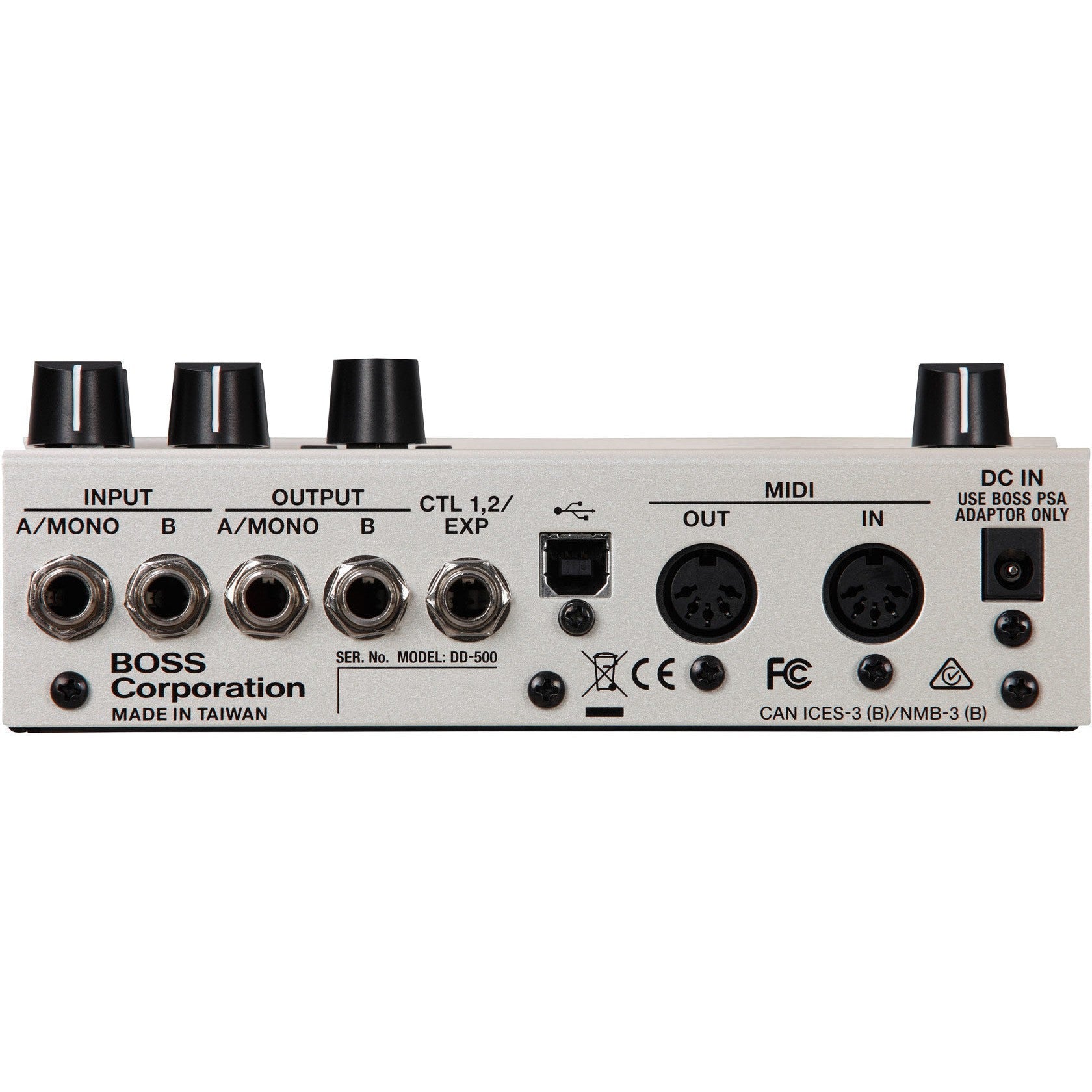

Connectors
INPUT A/MONO, B jacks: 1/4-inch phone type
OUTPUT A/MONO, B jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TRS phone type
USB COMPUTER port: USB type B USB-MIDI
MIDI (IN, OUT) connectors
DC IN jack

Power Supply
Alkaline battery (AA, LR6) x 4AC adaptor
Current Draw 200 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.): Alkaline: Approx. 7 hours

Accessories
Owner's manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4

Options (sold separately)
AC adaptor: PSA series
Footswitch: BOSS FS-5U, FS-5L
Dual Footswitch: BOSS FS-6, FS-7
Expression Pedal: BOSS FV-500H, FV-500L, Roland EV-5

SIZE AND WEIGHT
Width 170 mm6-3/4 inches
Depth 138 mm5-7/16 inches
Height 62 mm2-1/2 inches
Weight (including battery) 1.0 kg2 lbs 4 oz.
