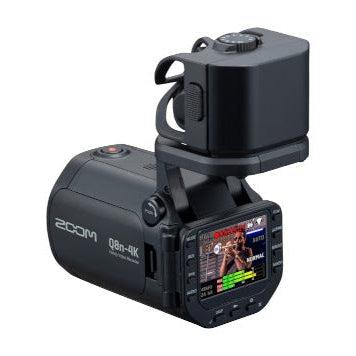

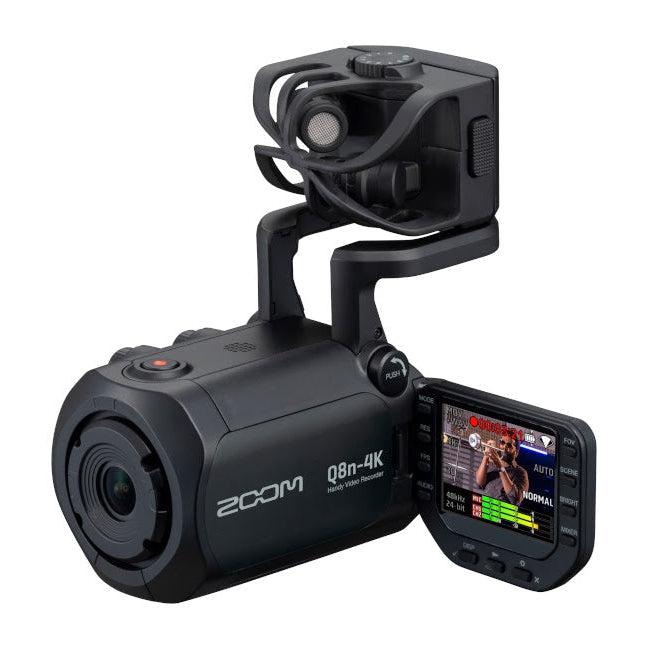

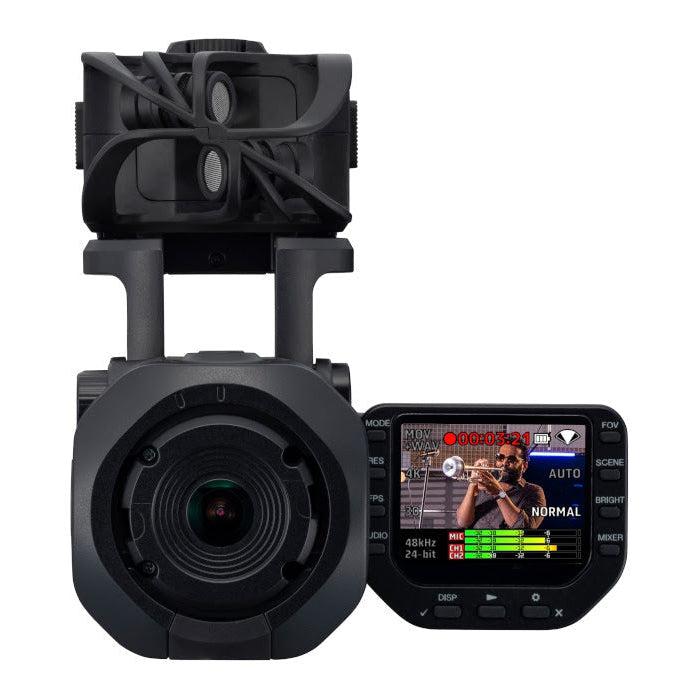

The Q8n-4K is a practical video recorder with a replaceable microphone capsule that captures clearer images in 4K quality. It has two external XLR inputs and the possibility of simultaneous recording of up to four audio tracks for video in high quality with up to 24bit/96kHz. HDR (High Dynamic Range) processing minimizes the black-and-white blurring common at concerts with intense lighting effects, resulting in high-resolution live video with plenty of detail. The Zoom Q8n-4K also supports the new generation of microphone capsules V2.0, which can handle up to 4 channels. There are a total of 9 different microphone capsules to choose from, including shotgun, XY/AB and VR microphones.
* Up to 1080p quality and 48 kHz/16-bit sound quality when using the webcam function.
* Up to 1080p quality and 48 kHz/16-bit sound quality when using the webcam function.
Properties
- 4K video and 4-track audio recorder
- Interchangeable Zoom microphone capsule system
- Two XLR mic/line inputs (with phantom power)
- HDR (High Dynamic Range) recording to reduce black and white blur
- F2.8 lens with 150° wide angle for clearer and wider images
- 5 scene settings (Auto / Indoor / Outdoor / Night / Concert Light) and 3 brightness settings
- The LCD screen can be rotated 180° for selfie shots
- Two XLR inputs for connecting external microphones/lines (phantom power and -20 dB PAD)
- 5 effects to improve audio recording quality (Limiter / Compressor / Leveler / DeEsser / NoiseGate)
- Low-cut filter function to reduce low-frequency sounds such as noise from air conditioning
- USB connection for use as a PC/Mac webcam for live streaming (up to 1080p quality, 48 kHz/16-bit sound quality)
- HDMI output for connection to a Smart TV (compatible with NTSC and PAL)
- Video data is recorded in MOV format (MPEG-4 AVC / H.264 format)
- Uses microSD / microSDHC / microSDXC card as recording media (supports up to 512GB card storage capacity)
- Rechargeable lithium-ion battery with an operating time of 1 hour and 20 minutes (4K/30fps recording)
- Remote control via the iOS app "Q8n Control" with the separately available Bluetooth adapter (BTA-1)
Technical data
-
Image sensor
- 1/2.3" CMOS sensor with 16 million pixels
-
Lens
- F 2.8, 150 ° angle
-
Video format
- MPEG-4 AVC / H.264 (MOV)
-
Video resolution
-
4K
- 30, 25, 24
-
1080
- 60, 50, 30, 25, 24
-
720
- 60, 50, 30, 25, 24
-
4K
-
Audio format
- WAV only
-
96 KHZ
- 24-bit, 16-bit
-
48 KHZ
- 24-bit, 16-bit
-
44.1 KHZ
- 24-bit, 16-bit
-
Sound functions
-
LO CUT
- Off / 80 Hz / 120 Hz / 160 Hz / 200 Hz / 240 Hz / 240 Hz
-
FX
- Off / Limiter / Compressor / Leveler / DeEsser / NoiseGate
-
LEVEL
- - ∞ dB ~ +10 dB
-
PAN
- L100 ~ Mid ~ R100
-
DELAY
- 0 ms., 10 ms - 300 ms (when using a WEB camera)
-
DIRECT MONITOR
- On / Off (when using WEB camera and USB microphone function)
-
LO CUT
-
Video features
-
Field of vision
- 5 levels
-
Choice of scene
- Auto / indoor / outdoor / night / concert light
-
Self timer
- Off / 3 seconds / 5 seconds / 5 seconds / 10 seconds
-
Brightness
- low / normal / high
-
Field of vision
-
Display
- 2.0" LCD screen in full color 320x240
-
Audio input
-
MIC
- XY microphone: XYQ-8 (XY stereo system 120°)
- Maximum sound pressure level: 120 dB SPL
- Input gain: - ∞ dB ~ 43 dB
-
MIC
-
Input 1/2
- Input connector: XLR
- Input gain (PAD OFF): - ∞ dB to 55 dB
- Input impedance: 1.8 kΩ or more
- Maximum allowable input level: +26 dBu (PAD ON)
- Phantom power: +12 V / +24 V / +48 V
- Input Conversion Noise: -120 dBu or less
-
Audio/video outputs
- Line/headphone stereo minijack
- HDMI Micro Type D
-
Built-in speaker
- 300 mW 8 Ω mono speaker
-
Recording media
- microSD / microSDHC / microSDXC (cards with up to 512 GB storage capacity can be used)
-
USB
- USB Type-C
-
Webcam class: UVC 1.0 + UAC 1.0,
- Specifications: Video WVGA, 720p, 1080p
- Sound 48 kHz / 16-bit
-
Card reader
- Class: USB mass storage class
- USB microphone class: UAC 1.0, Specifications: 44.1 kHz / 16-bit
- Write: 2 channels, Read: 2 channels
- Card reader and USB microphone are compatible with iOS devices
- Supports USB bus operation
- Use a USB cable that supports data transfer.
-
Possibility of remote control
- Dedicated wireless adapter (ZOOM BTA-1)
-
Power supply
- Lithium-ion battery: maximum voltage DC 4.2 V, nominal voltage DC 3.7 V, capacity 1,600 mAh
- Power supply unit (ZOOM AD-17): DC 5 V / 1 A
-
Charging time
- Via USB 2.0 connection: Approx. 4 hours and 30 minutes
- Via USB 3.0 port: Approx. 3 hours and 00 minutes
- Via ZOOM AD-17: approx. 3 hours and 00 minutes
-
Battery life
- 4K / 30: 1 hour and 20 minutes
- 1080/30: 2 hours and 30 minutes
- MOV mode, 48 kHz / 24 bit, XYQ-8 connector, no XLR input, power saving mode enabled
-
Unit dimensions
-
Cabinet (folded microphone boom)
- Total length 159 x width 68 x height 65 mm
-
Cabinet (unfolded microphone boom)
- Total length 134 x width 68 x height 135 mm
-
Microphone
- 45 x 66 x 51 mm (L x W x H)
-
Cabinet (folded microphone boom)
-
Weight
- 367 g (including batteries)
-
Packaging dimensions (LxWxH)
- 215 x 160 x 90 mm
-
Total weight including packaging
- 731 g

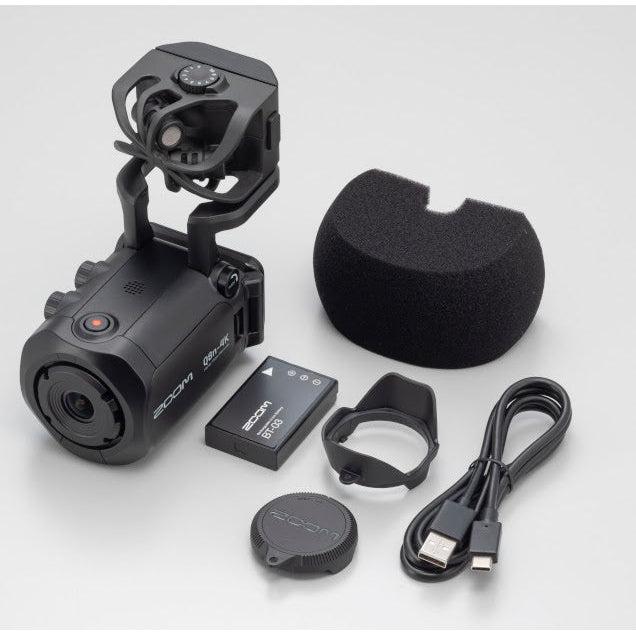

The product includes
- Handy video recorder "Q8n-4K
- Rechargeable lithium-ion battery
- Wind hood
- Lens cover
- Backlight aperture
- USB cable (Type A to C)
Accessories (sold separately)
- XY Stereo Microphone (XYH-5)
- XY Large Diaphragm Stereo Microphone (XYH-6)
- MS stereo microphone (MSH-6)
- Shotgun Microphone (SGH-6)
- Stereo Shotgun Microphone (SSH-6)
- XLR/TRS combo inputs (EXH-6)
- XY-AB Stereo Microphone (XAH-8)
- Ambisonic VR Microphone (VRH-8)
- 3M Extension Cable for Microphone Capsule (ECM-3)
- 6M extension cable for microphone capsule (ECM-6)
- Bluetooth adapter (BTA-1)
- Table stand (TPS-5)
- 5V AC adapter (AD-17)
- Rechargeable Lithium Ion Battery (BT-03b)
- Soft case (SCU-20)
- Large Capacity Soft Case (SCU-40)
