SKU:590352
- New generation of the iconic flagship series.
- Nord Stage 4 73 with semi-weighted Triple Sensor keys (AC), aftertouch and physical drawbars with LED indicators.
Full Description

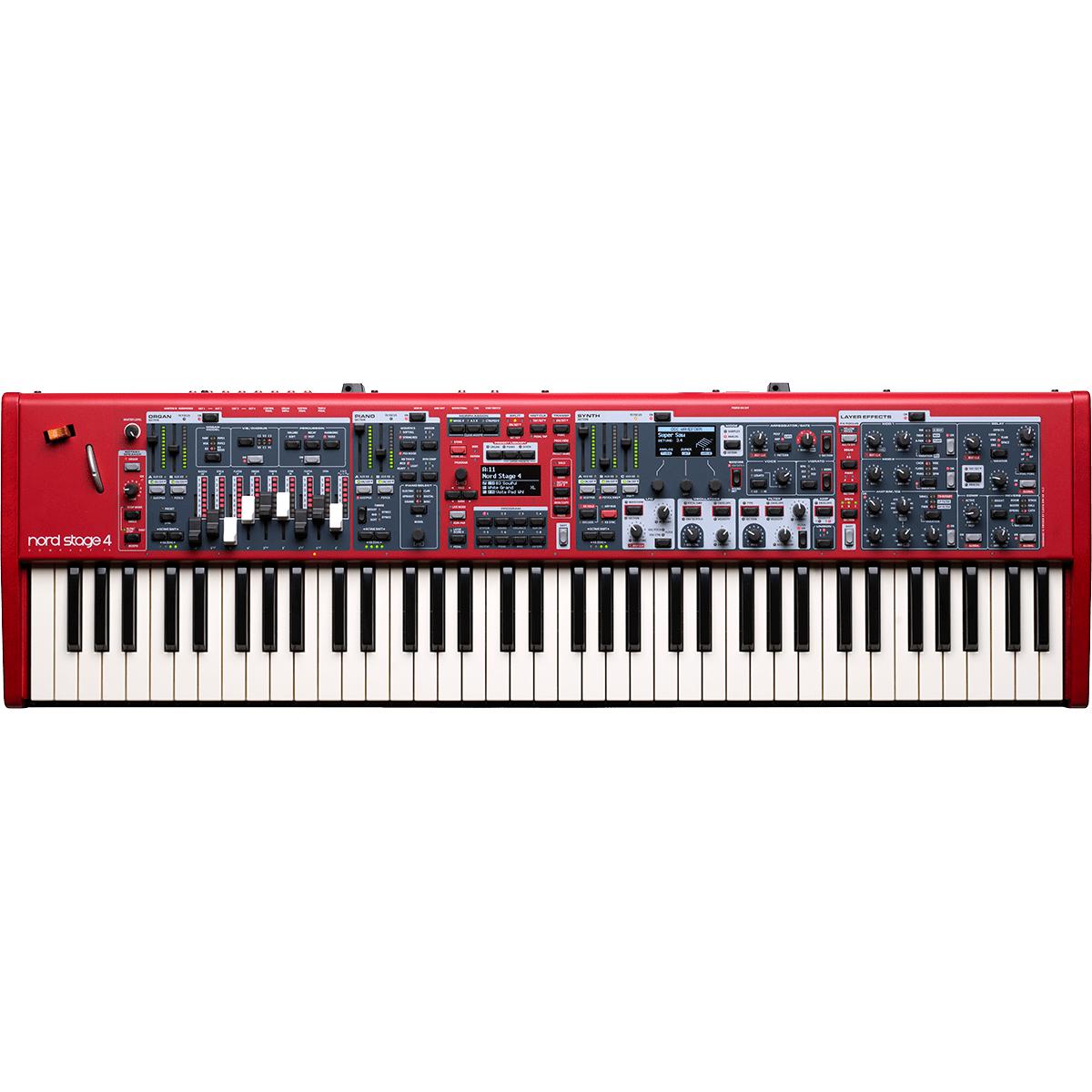

Nord Stage 4 73 with semi-weighted Triple Sensor keys (AC), aftertouch and physical drawbars with LED indicators.
NORTH STAGE 4
New generation of the iconic flagship series.
With an intuitively redesigned panel, premium Triple Sensor keys, complete effects sections for each of the four Layers and hefty optimizations of Nord's award-winning technologies, the Nord Stage 4 sets a whole new standard.
THE NEW EXPERIENCE
Nord Stage 4 comes with a completely newly designed panel with dedicated LED faders for each Layer, which provides exceptional overview and flexibility when making sounds or during a live performance. The new sound library is packed with inspiring Piano, Synth and Organ sounds.
The layer function allows you to smoothly switch between two different sound setups with a single touch. Add to this a particularly powerful effects section, versatile pedal functions and the best Triple Sensor keys, Nord Stage 4 offers a completely new level and possibilities for musical expression.
PIANO
Nord Stage 4 comes with a new and improved collection of Grands, Uprights and Electric Pianos from Nord's exclusive Nord Piano Library combined with new features such as Dynamic compression and Unison.
- Improved collection of Uprights, Grands, EPs and more
- Dynamic Compression
- Unison function
- Creative Timbre presets

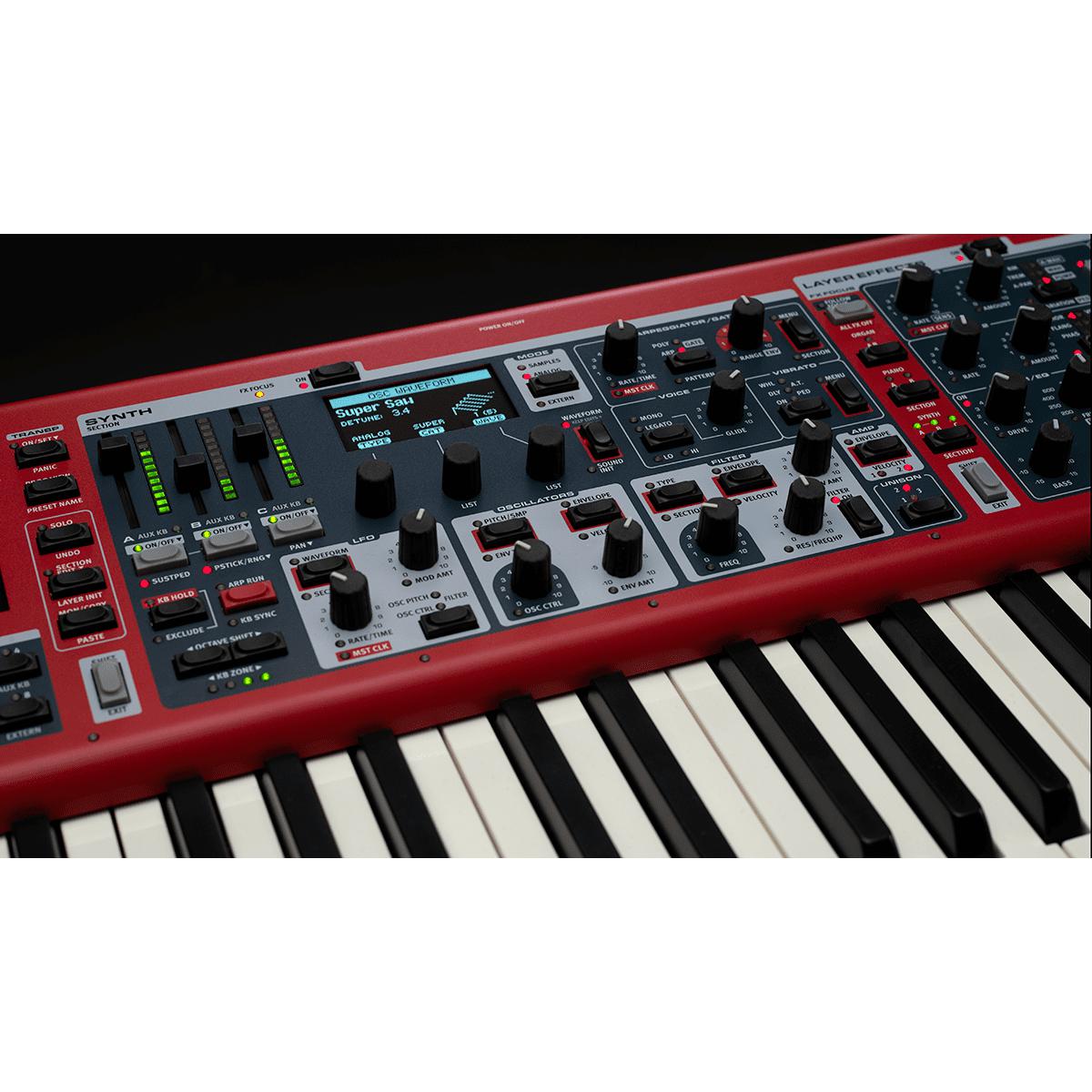

SYNTH
The synth section with its three individual layers is based on the powerful Nord Wave 2 Synth engine, i.a. including Virtual Analog synthesis, Samples, FM and Digital Waves. An excellent new collection of samples from the Nord Sample Library, providing a wide variety of samples with everything from Strings, Bass, Choirs, Guitars and more. The advanced Arpeggiator comes with new modes; Polyphonic, Gate and Pattern, and can be used for an infinite variety of rhythmic applications with programmable patterns.
- Nord Wave 2 Synth engine
- 3 individual Synth Layers
- Double sample memory.
- Improved samples with Tru-Vibrato, Unison and Round Robin
- Unrivaled real-time controls
- Advanced Arpeggiator with Polyphonic, Gate and Pattern modes
- External mode for advanced MIDI control

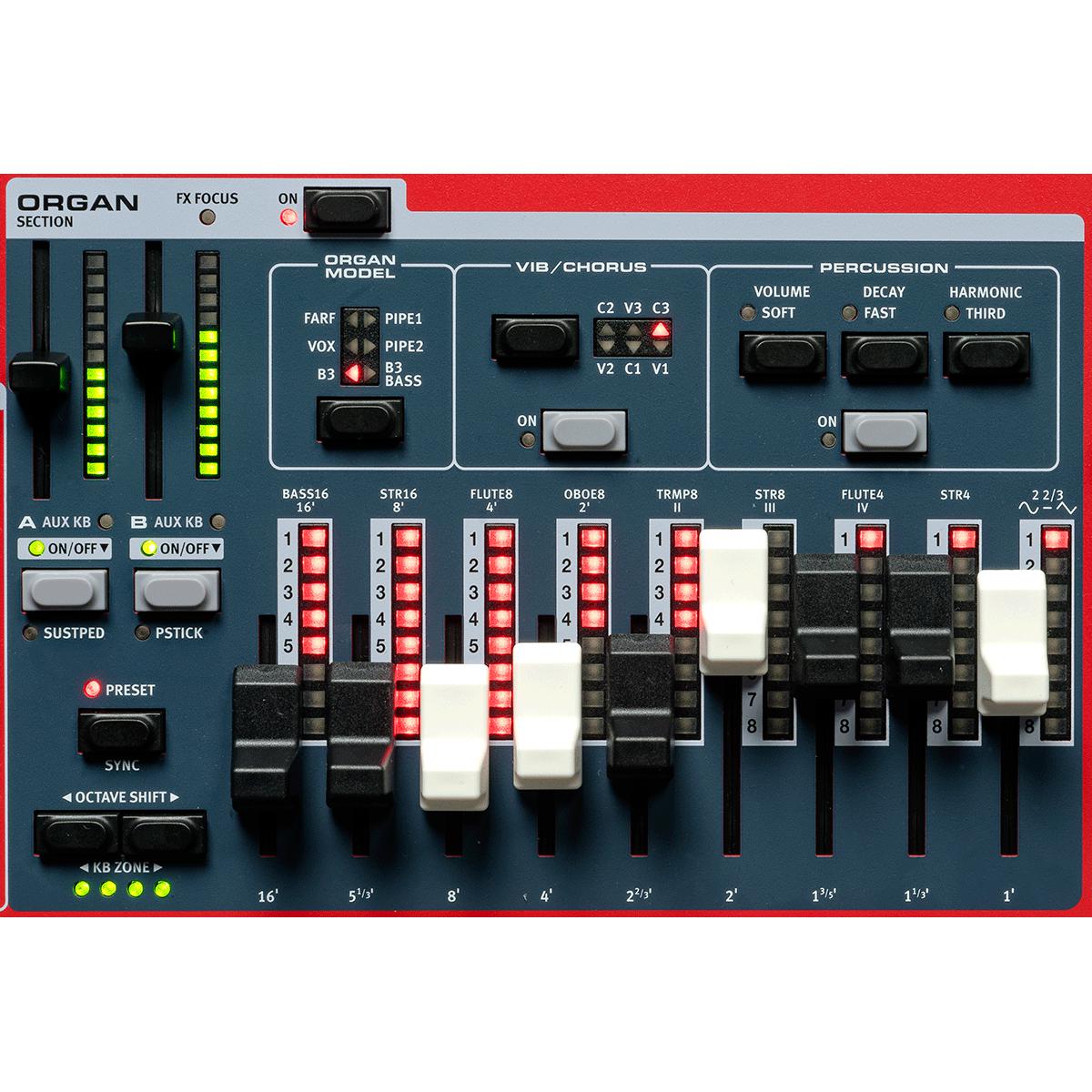

ORGAN
The organ section contains i.a. the award-winning simulations of the B3 Tonewheel, B3 Bass, Classic Vox and Farfisa as well as two pipe organ models. All Stage 4 models are equipped with the new physical drawbars with LED indicators, which give you an optimal hands-on experience and overview.
- Award-winning organ simulations of B3, Vox/Farfisa and pipe organ models
- Physical drawbars with LED indicators
- New B3 Bass mode
- Drawbar Live mode
- Model 122 Vintage Rotary Speaker with normal or 'close mic' positions
EFFECTS
Nord Stage 4 has a powerful effects section that gives you a complete effects setup for each Layer. The impressive collection of effects includes e.g. a new 'Pump' effect for tempo sync or pedal-controlled side-chain modulation, a new 'Spin' effect and brand new variations of Reverb, Delay, Amps and modulation effects.
- Dedicated effects section for each Layer
- New variations of Modulation, Amp, Delay and Reverb effects
- New Spring, Booth and Cathedral Reverb
- New Pump effect
- New Spin effect
- New Flam and Space Delay
Video
Specifications

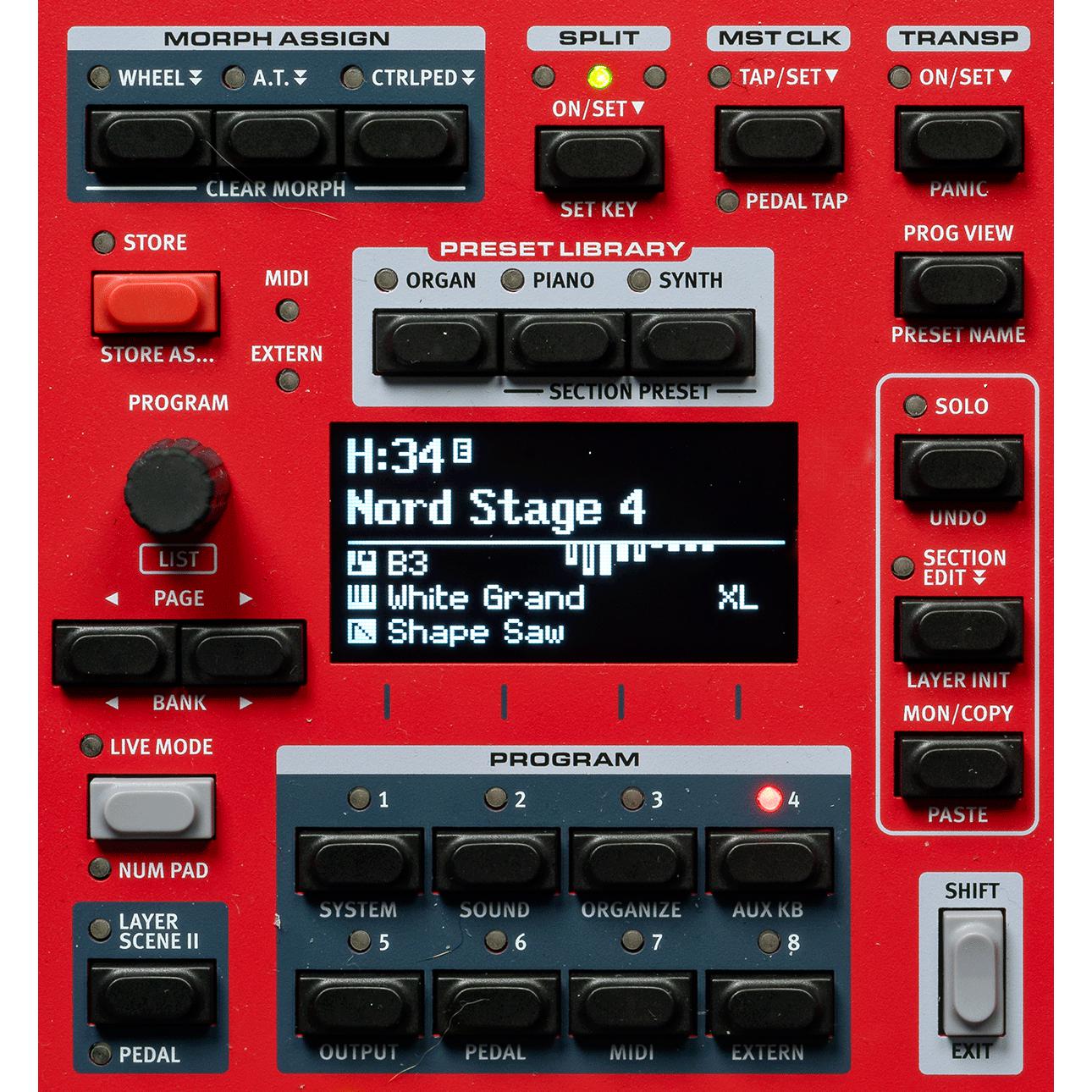

GENERAL
- Master Level Control
- Wooden Pitch Stick
- Modulation Wheel
- 512 Programs - 8 Banks with 8 Pages each. Each Page has 8 Program locations
- Preset Library with Organ, Piano and Synth Presets including effects. 2x64 Organ Preset locations, 2x64 Piano Preset locations, 8x64 Synth Preset locations.
- 8 Live Programs
- 2 Individual Layer Scene Setups
- 3 Morph sources: Modulation Wheel (also controllable by Swell pedal), Control Pedal, Aftertouch
- Stereo and Mono output routing options
- Programmable Transpose +/- 6 semitones
- Master Clock functionality with manual, external and tap-tempo rate control
- Internal and MIDI clock source
- MIDI over USB functionality
- Level control
- Aftertouch
- Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
- 3 Split Point width (crossfade) options: Lrg, Sml or Off
ORGAN SECTION
- Nord C2D B3 Tone wheel Organ simulation
- Vox Continental and Farfisa models
- 2 Digital Pipe Organ models
- B3 Bass mode
- Physical Drawbars with LED graphs
- Preset or Drawbar Live mode
- Percussion controls
- Vibrato / Chorus control
- 2 Layers (2-Part Multitimbral)

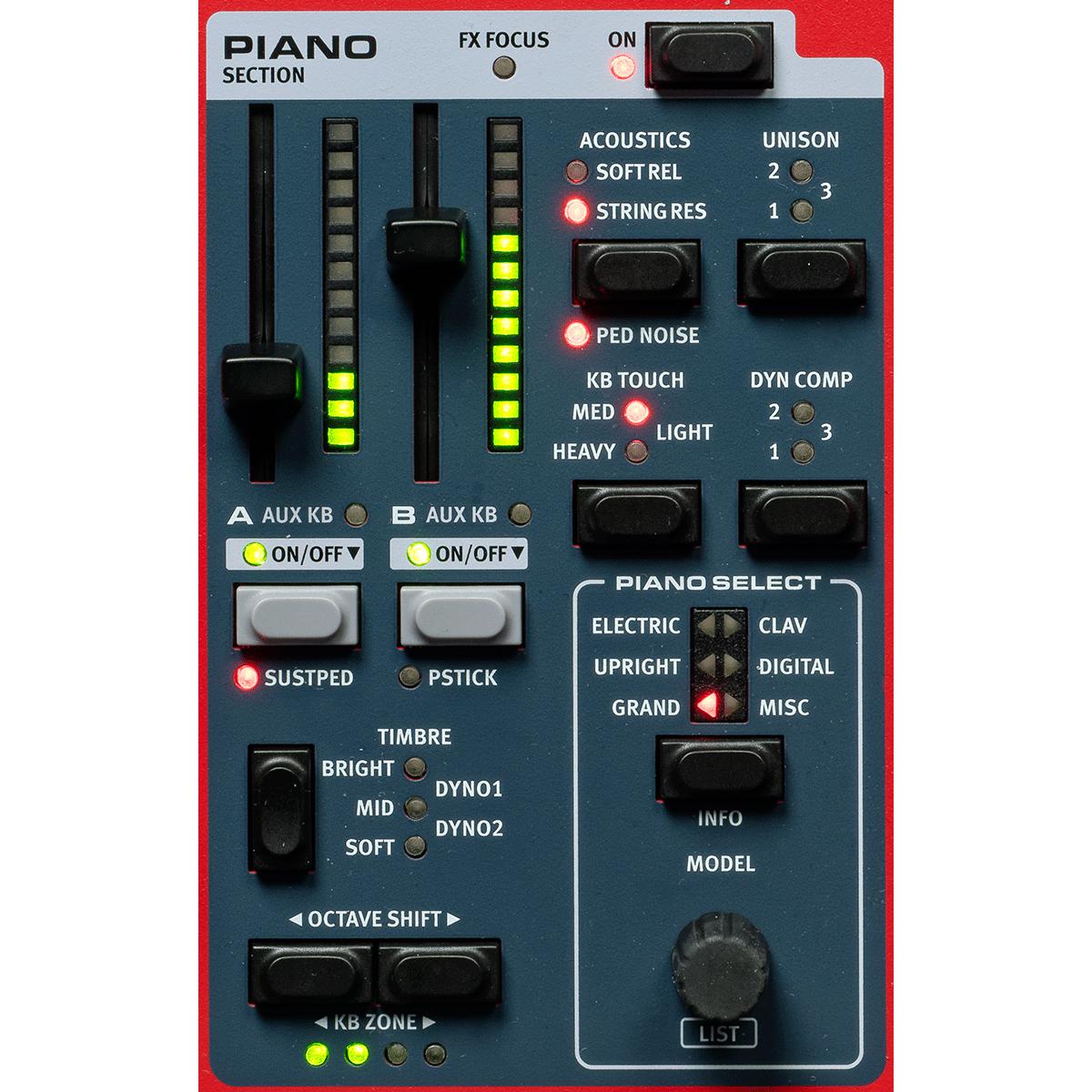

PIANO SECTION
- 2 GB memory for Piano sounds
- All sounds can be replaced using Nord Sound Manager (Mac/Win)
- 120 Voice Polyphony
- Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
- 3 Selectable Keyboard Touch Curves (Heavy, Medium, Light)
- Piano Timbre controls with custom settings for Electric Pianos and Clavinet
- String Resonance for acoustic Grand Pianos and Uprights
- Selectable Soft Piano Release
- Pedal Noise when used with Nord Triple Pedal 1, Nord Triple Pedal 2 or Nord Sustain Pedal 2 on selected acoustic and electric pianos
- Dynamic Compression
- Unison functionality
- 2 Layers (2-Part Multitimbral)

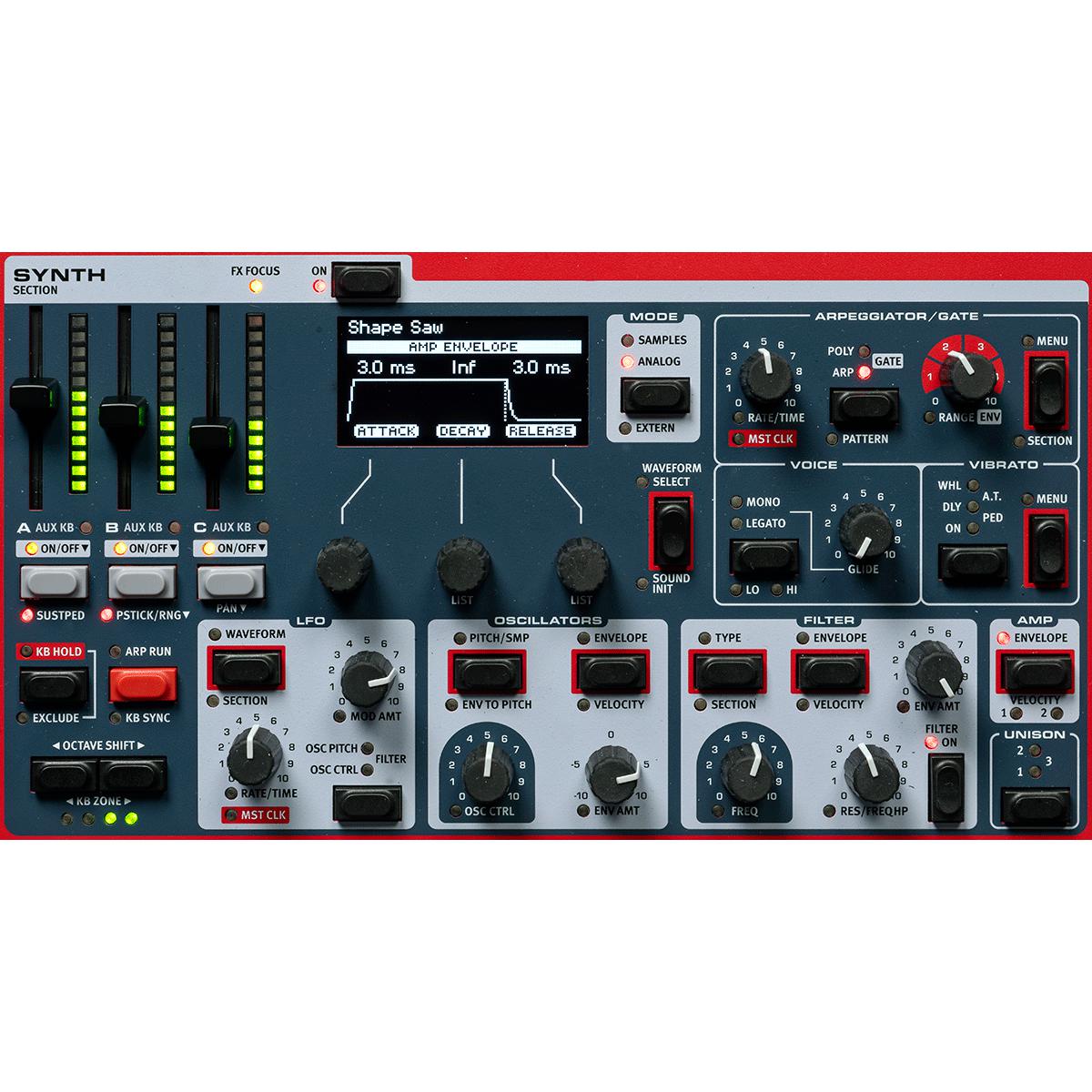

SYNTH SECTION
- Nord Wave 2 Synth Engine with Sample Playback
- Dedicated OLED Display for Waveform/Sample selection and parameter editing
- 1 GB Memory for Nord Sample Library
- All samples can be replaced using Nord Sound Manager (Mac/Win)
- 46 Voice polyphony
- Oscillator Types: Analog (incl. Super, Noise and Misc waveforms), Digital Waves, FM and Sample
- Analog Waveform options: Pure, Shape, Shape Sine, Multi, Super, Sync, Bell, Misc (Noise)
- Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
- Filter Drive: Off, 1, 2 and 3
- Filter Tracking: Off, 1/3, 2/3 and Full
- 3 Unison modes
- Filter envelope (Attack, Decay, Sustain) with Velocity control
- Amplitude envelope (Attack, Decay, Sustain) with Velocity control
- Oscillator envelope (Attack, Decay, Sustain) with Velocity control
- LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
- Advanced Arpeggiator with Arp, Polyphonic and Gate modes
- Arpeggiator Patterns for all modes, with Accent and Pan options
- LFO and Arpeggiator synchronizable to Master Clock
- 3 Layers (3-Part Multitimbral)

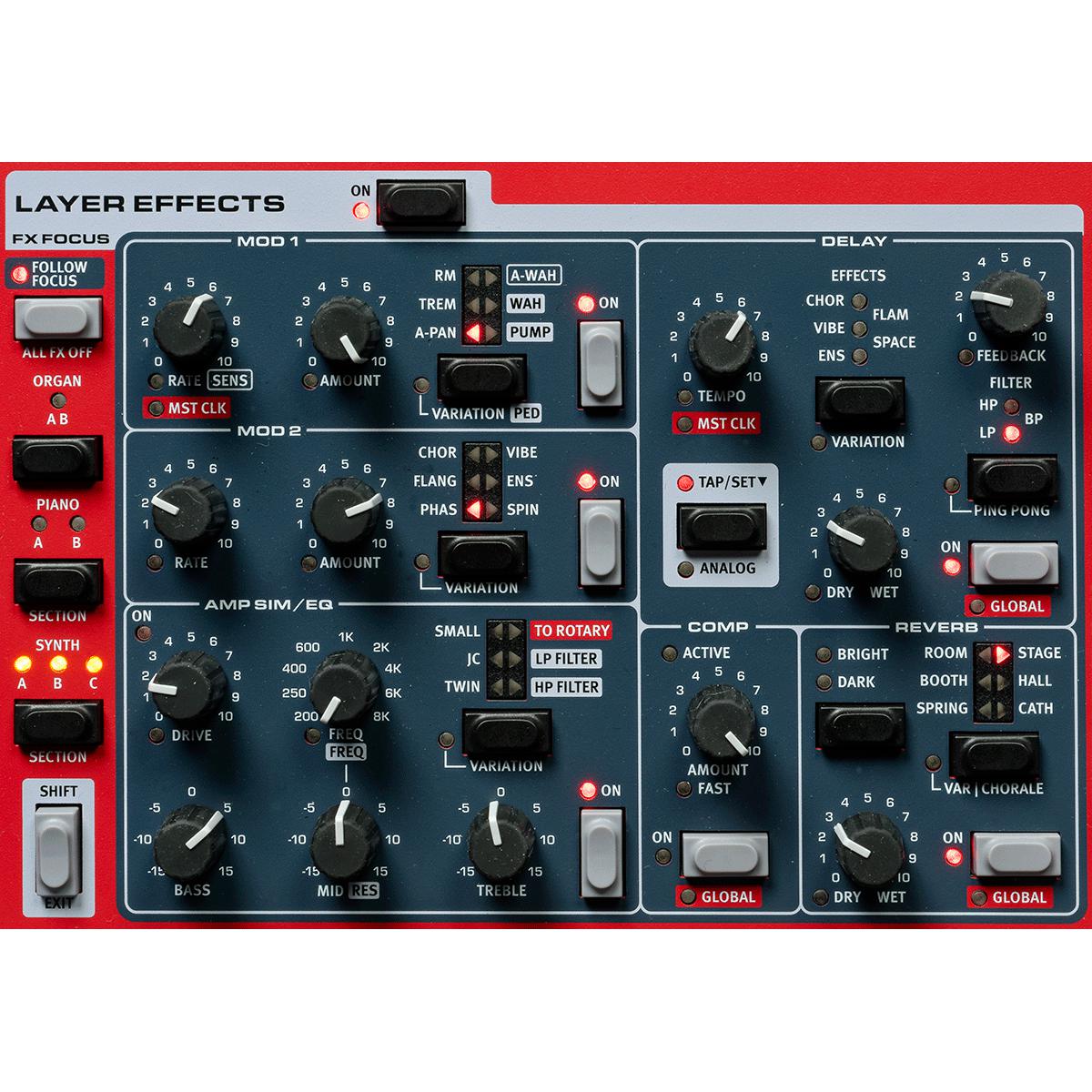

EFFECTS
- Mod 1: Tremolo, Auto Pan, Ring Modulator, Wah-Wah, Auto-Wah, Pump (Sidechain modulation). Variation for each effect
- Mod 2: Phaser, Flanger, Vibe, Chorus, Ensemble, Spin. Variation for each effect
- Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP), Feedback Effects with Variations and panel selectable Analog mode.
- 3 types of Amp/Speaker simulations, Twin, JC and Small. Variation for each model
- Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
- Tube amp simulation with adjustable overdrive
- 3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
- Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
- Effect rates/tempo can be synchronized to the Master Clock
- Compressor with Fast Mode
- Reverb: 6 algorithms (Spring, Booth, Room, Stage, Hall and Cathedral) with Dark/Bright modes and Variation/Chorale options
KEYBOARD
- Nord Stage 4 88: 88-key Triple Sensor Hammer Action keyboard with Aftertouch. Range: AC
- Nord Stage 4 73: 73-key Triple Sensor Hammer Action keyboard with Aftertouch. Range: EE
- Nord Stage 4 Compact: 73-key Triple Sensor Semi Weighted Waterfall keyboard with Aftertouch. Range: EE

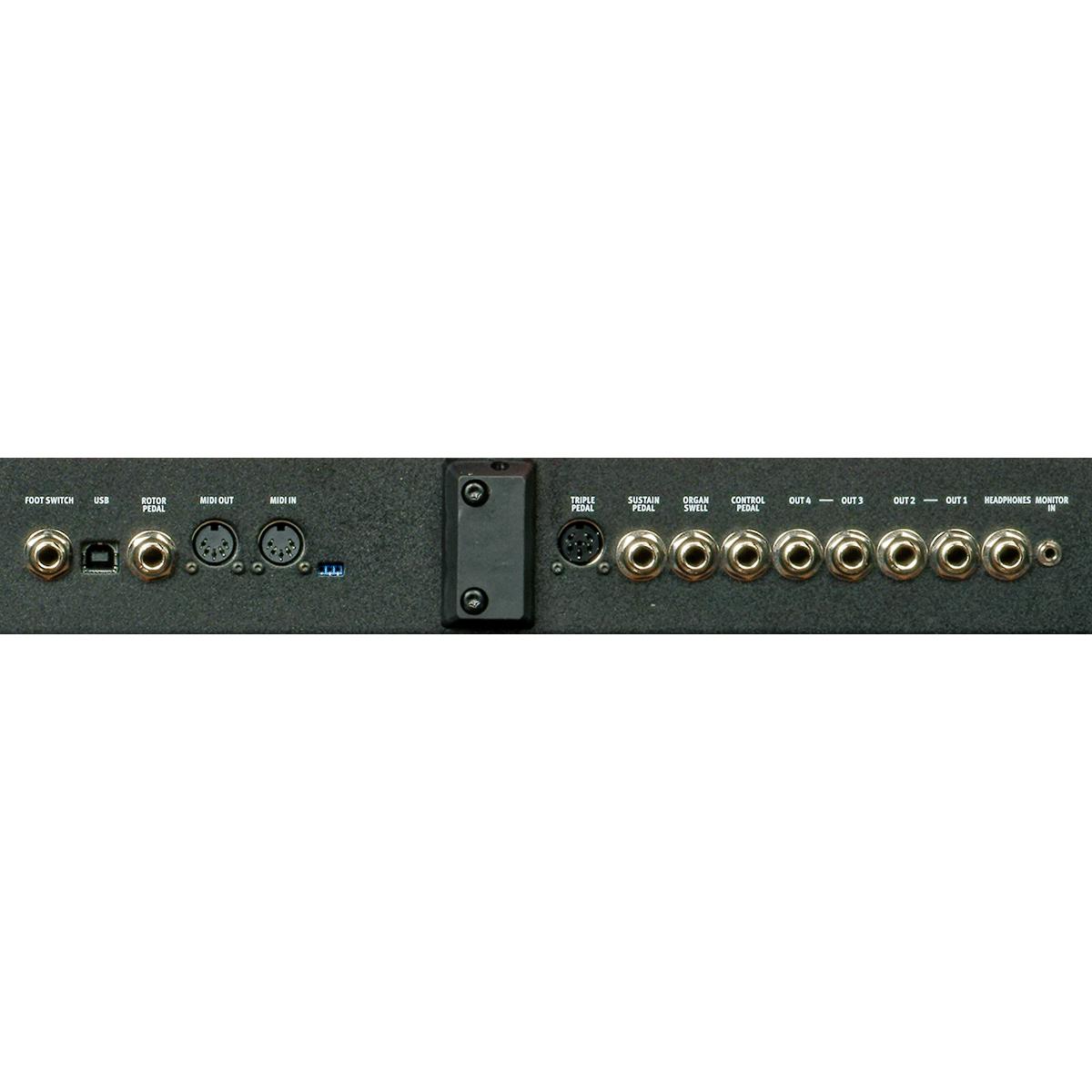

CONNECTIONS
- 4 Assignable Audio Outputs - ¼", 6.35 mm jacks, unbalanced
- Stereo Headphone output - ¼", 6.35 mm stereo jack
- 1 Monitor input - 1/8", 3.5 mm stereo jack
- Sustain Pedal - ¼", 6.35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals
- Triple Pedal - 5 pin DIN connector. Compatible with Nord Triple Pedal 2
- Rotor Pedal - ¼", 6.35 mm jack. Use a momentary pedal or a switch type pedal.
- Organ Swell Pedal - ¼", 6.35mm TRS stereo jack.
- Control Pedal - ¼", 6.35 mm TRS stereo jack.
- Foot Switch input - ¼", 6.35 mm jack. Use a momentary two-button pedal or a single switch type pedal.
- MIDI In - 5 pin DIN connectors
- MIDI Out - 5 pin DIN connectors
- USB - type B connector for USB MIDI, Software Update and Sound Transfer
- Power Cord with IEC C14 connector
INCLUDED ACCESSORIES
- User Manual
- Power cord
- USB cord
OPTIONAL ACCESSORIES
- Nord Triple Pedal 2
- Nord Single Pedal 2
- Nord Sustain Pedal 1
- Nord Triple Pedal 1
- Nord Piano Monitor
- Nord Keyboard Stand EX
- Nord Soft Case
- Nord Music Stand EX
- Nord Half-Moon Switch (for Compact model)
- Dust cover
DIMENSIONS
- Nord Stage 4 88: 1282 mm (50.5"), 121 mm (4.7"), 349 mm (13.7")
- Nord Stage 4 73: 1069 mm (42"), 121 mm (4.7"), 349 mm (13.7")
- Nord Stage 4 Compact: 1066 mm (42"), 104 mm (4.1"), 322 mm (12.7")
WEIGHT
- Nord Stage 4 88: 19.6 kg (43.2 lb)
- Nord Stage 4 73: 16.7 kg (36.8 lb)
- Nord Stage 4 Compact: 10.4 kg (22.9 lb)
