• Compact analogue mixer with 6 channels and BlueTooth
• USB I/O for audio playback and stereo recording
• Dedicated Bluetooth channel with "mix-minus" for feedback-free phone pairing
• 2 headphone outputs with independent volume control
• TRS Main, Tape and AUX outputs
• 2 microphone input channels with phantom power and balanced line inputs
• 2 stereo input channels with balanced 1/4” TRS connectors
• Two-band EQ on all channels
• 2-track inputs with separate routing: Main Mix or headphone output

Description

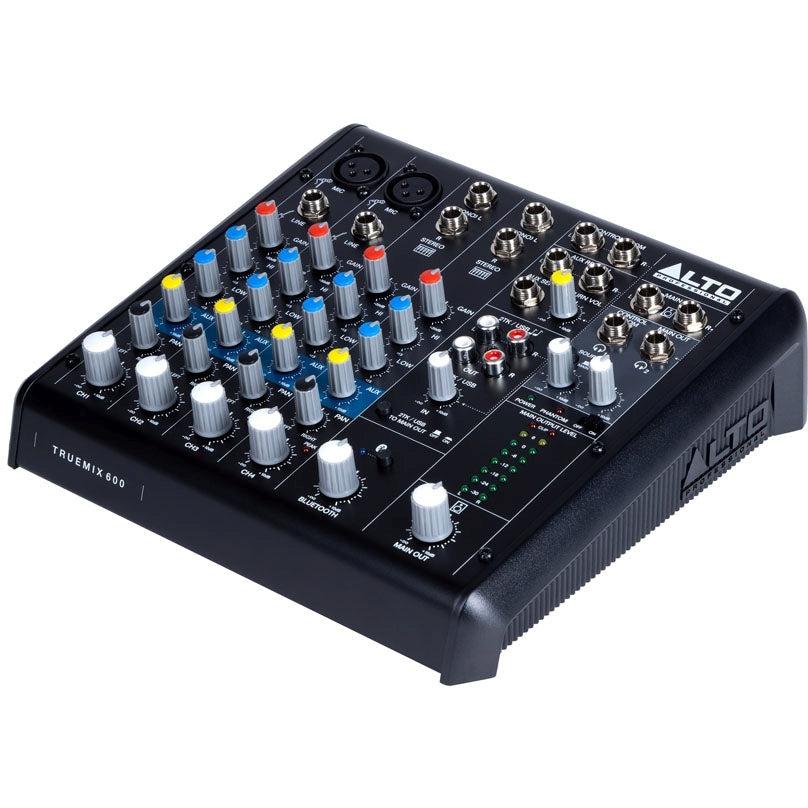

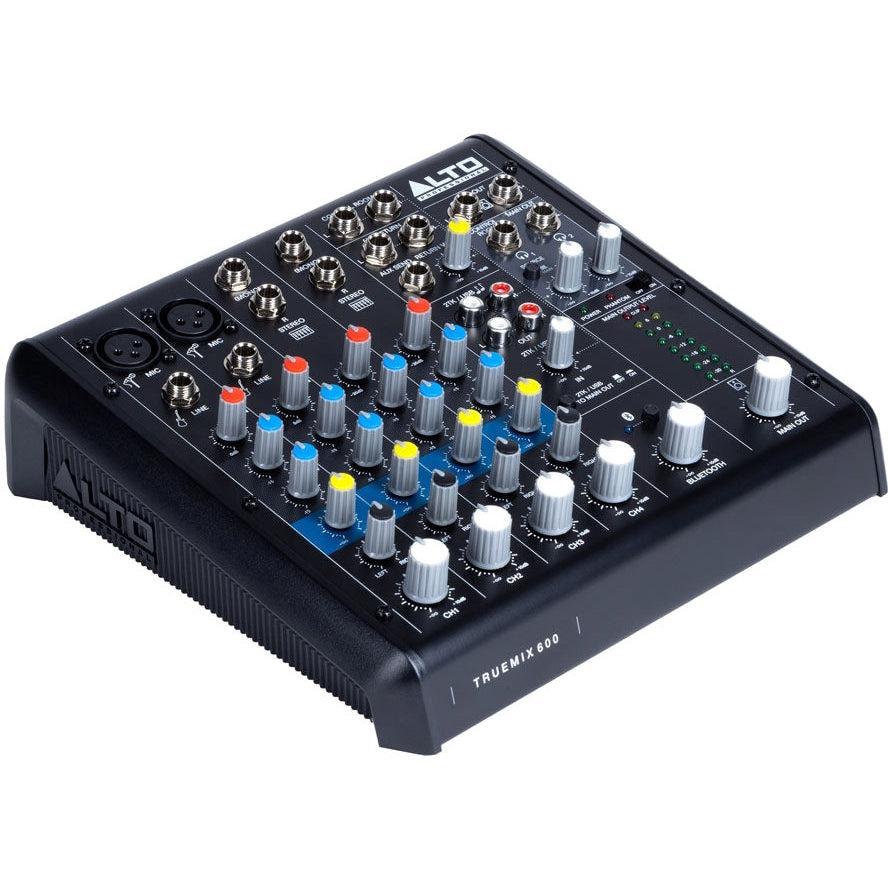

6-channel mixer with USB and Bluetooth

The Alto Professional TrueMix 600 is a compact mixer that delivers all the essential features you need for home recording, live streaming, podcasting or performing. There's a convenient Bluetooth channel for easy streaming from your iOS/Android devices. Unique to the TrueMix series, the Bluetooth channel also supports feedback-free phone pairing using "mix-minus" technology.

There are 6 analog inputs with high headroom to ensure minimal noise. The microphone input channels offer XLR inputs that can accept both dynamic and condenser microphones with 48v phantom power. These channels also have balanced TRS line inputs for connecting instruments and other line-level signals. There are also two stereo input channels, each with dual balanced TRS inputs. All channels have a two-band EQ with color-coded knobs that make it easy to adjust the signal, even in low-light conditions.

Connect the TrueMix 600 to your computer via USB 2.0 for plug and play connectivity on Windows and macOS. The TrueMix 600 is a feature-packed compact audio mixer that's perfect for use on the go, in the home studio, or in the practice room.

Flexible output routing

Whether you're recording a podcast, live streaming online or making music at home, it's important to be able to hear yourself and easily monitor your sound. The TrueMix 600 has a range of output and routing options to handle any scenario. There are two headphone outputs, each with their own volume control. If you need to send your audio signals to another destination, such as a monitor or effects unit, each channel is equipped with a Send button, so you can always choose the right destination. For recording, the USB output sends a copy of the Main Out to your computer. You can also connect the 2-Track in/out to an external recorder, which can also be sent directly to the headphones. In short, there aren't many scenarios that the TrueMix 600 can't handle.

Videos

Specifications

• Compact analogue mixer with 6 channels and BlueTooth
• USB I/O for audio playback and stereo recording
• Dedicated Bluetooth channel with "mix-minus" for feedback-free phone pairing
• 2 headphone outputs with independent volume control
• TRS Main, Tape and AUX outputs
• 2 microphone input channels with phantom power and balanced line inputs
• 2 stereo input channels with balanced 1/4” TRS connectors
• Two-band EQ on all channels
• 2-track inputs with separate routing: Main Mix or headphone output
• 8-segment LED VU meter
• Extra button caps included in the box
• Frequency response: 20 Hz – 22 kHz (±1 dB)
• THD+N: < 0.005% (@ 4 dBu, 1 kHz)
• Gain range: Microphone inputs (Channel 1-2): 0 – 50 dB, Line inputs (Channel 1-2): 15 dBu – 35 dBu, Line inputs (Channel 3-6): -20 dBu – +20 dBu
• Max voltage gain: 70 dB (MIC INPUT to MAIN MIX OUTPUT), 80 dB (MIC INPUT to CTRL ROOM / PHONE OUTPUT), 60 dB (MIC INPUT to MON SEND)
• SNR: > 110 dBu
• Crossover Frequency: Adjacent Inputs: < -80 dB @ 1 kHz, Inputs to Outputs: < -75 dB @ 1 kHz (stereo L/R, channels 1-2, panned hard left or right)
• Phantom Power: +45 ~ +49V with on/off button
• Impedance: Mic inputs: 3.9 kΩ, All other inputs: > 10 kΩ, Aux outputs: 1 kΩ, All outputs: 120 Ω
• Equalizer: High: ±15 dB @ 12 kHz, Low: ±15 dB @ 80 Hz
• Bluetooth: A2DP, Bluetooth 5.0, 2402 MHz – 2480 MH, Range: 30.5 m

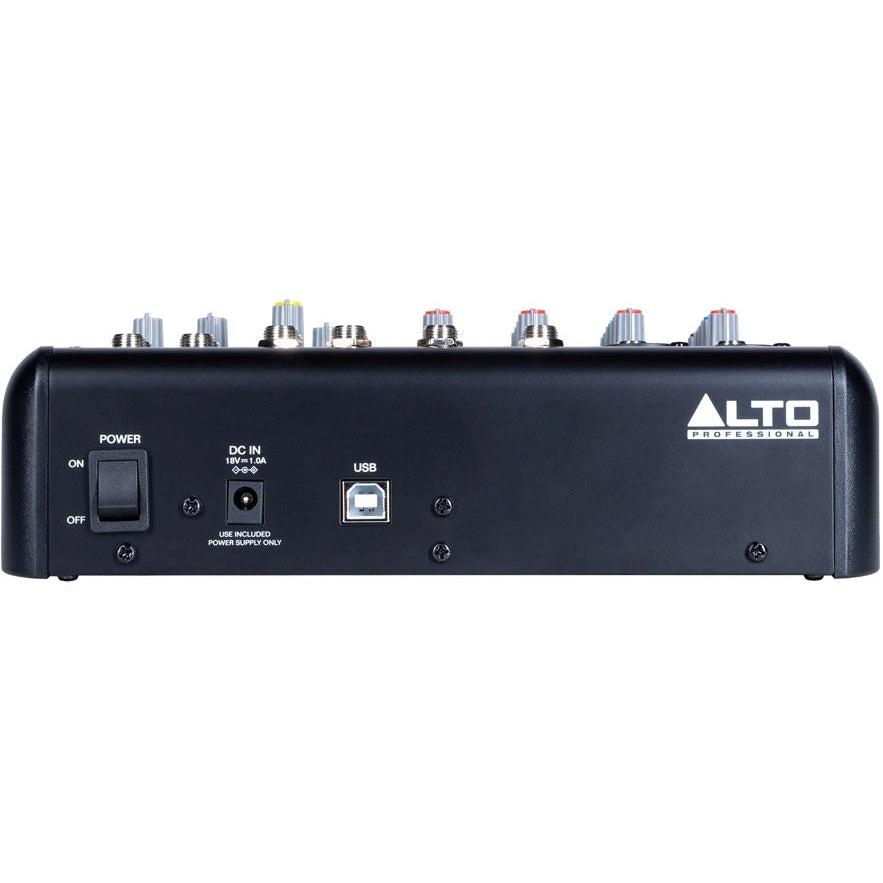

• Power: DC connection, Voltage: 18V, 1.2A, 18W consumption
• Dimensions: 225.5 x 217 x 74 mm
• Weight: 1.4 kg
