• Two-way studio monitor designed for nearfield use
• U-ART 1.9″ Accelerated Ribbon Tweeter with HPS Waveguide
• 7″ woofer and rear-projecting bass reflex port
• Accumulated amplifier. Power RMS: 70 W
• 39 Hz - 25 kHz
• Max. SPL per Pair at 1 m: ≥110 dB
• 5 year warranty

Full description

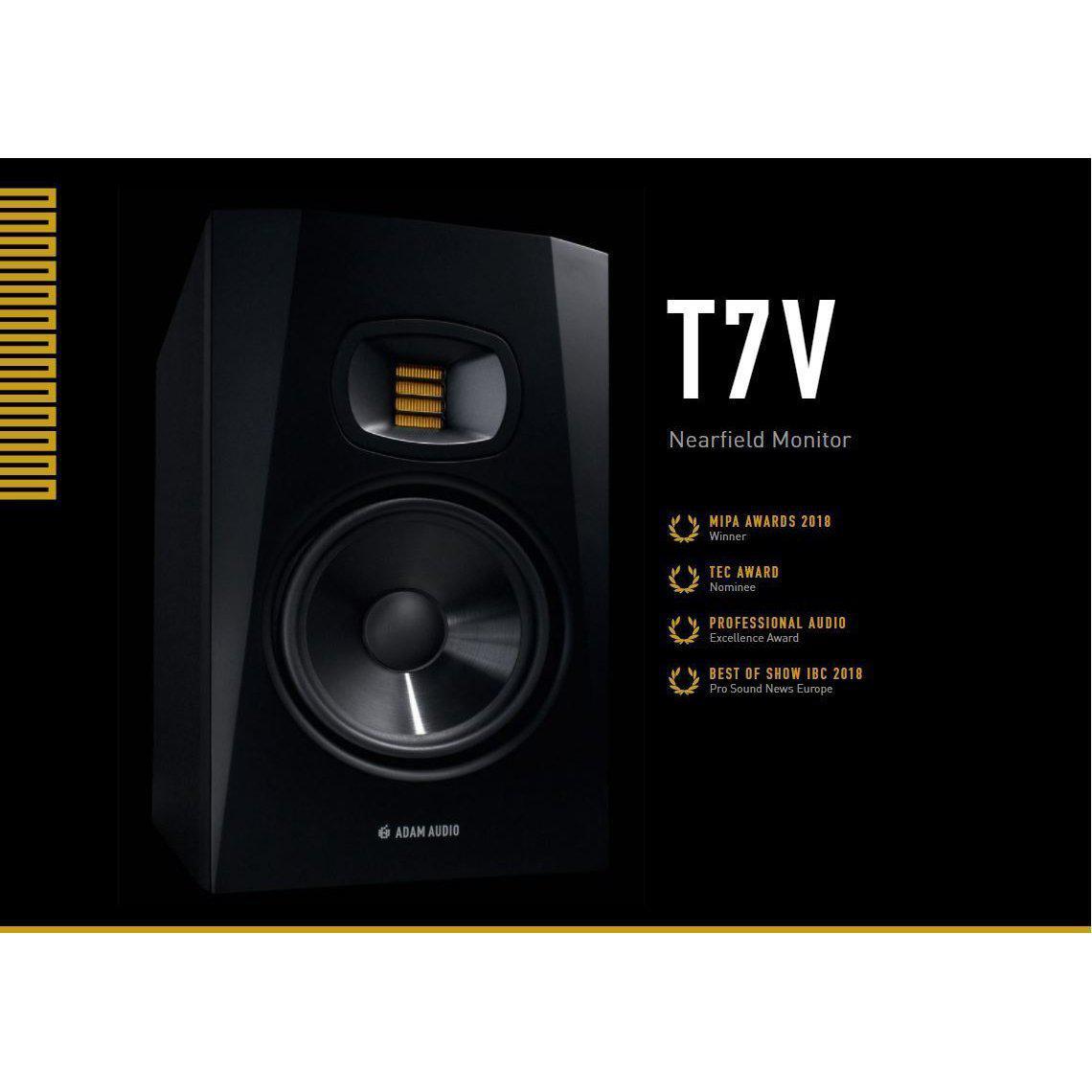

The T7V is a two -way studio monitor designed for nearfield use .

Powered with a 50 W Class D amplifier for the bass unit and a 20 W Class D amplifier for the U-ART tweeter which gives a set of T7V a sound pressure of up to 110 dB per pair in the frequency range 39 Hz - 25 kHz. and then with a 5-year warranty.

The T7V has a 7” woofer that provides bass extension down to 39 Hz, while the U-ART tweeter's diaphragm provides untouched and extended high-frequency response up to 25 kHz - almost unheard of in monitors in this price range. The U-ART tweeter is mounted on a precision waveguide with the same dispersion control properties as the High Frequency Propagation (HPS) waveguide used in ADAM Audio's flagship S-series studio monitors. The waveguide's highly uniform dispersion of high frequencies provides an incredibly wide sweet spot, freeing you from being glued to a rigid mixing position while you work.

On the back of the T7V's sloped cabinet, a rear-firing bass reflex port creates a sturdy metal plate that houses the analog input connections. The U-ART tweeter is powered by a 20 W Class-D amplifier, while a 50 W Class-D amplifier serves the woofer. These new power plants provide an impressive maximum of 110 dB SPL per Couple.

The wide frequency response, high dynamic range, excellent transient response, wide sweet spot and small footprint make the T7V perfectly suited for use in small control rooms for music production, video post production and broadcast production - a perfect fit for the modest budgets that many facilities need to work with with.

The ADAM Audio T10S subwoofer is the perfect match to complement the T7V to expand the possibilities of bottom monitoring.

Video

Specifications

TECHNICAL DATA
