Specifications

SOUND GENERATOR ORGAN SECTION:
2 Vase III as Digital Tone-Wheels, Transistor Organ and Pipe Organ
61 polyphony (for manual, except Pipe Organ)
8 polyphony (for pedal, except Pipe Organ)
63 polyphony (maximum, on Pipe Organ)
KEYBOARDS C1 to C6 61 keys
HARMONIC DRAWBARS DRAWBARS:
9 Ptiches, Assignable for Upper, Pedal, Lower
VOICE:
Manuals: 6 choices (B-Type1, B-Type2, Mellow, Vx, Farf, Pipe), Variable Key-click
Pedal: 4 choices (Normal, Muted, Synth1, Synth2), 5 choices Key-click
TOUCH RESPONSE PERCUSSION BUTTONS:
Percussion On, Third Harmonic, Fast Decay, Volume Soft
ADJUSTABLE:
Touch, Velocity, Decay (Fast/Slow) Level (Normal/Soft)
EFFECTS VIBRATO AND CHORUS:
Digital Scanner
Buttons: 1, 2, Chorus, Upper On, Lower On
EXAGGERATE:
Digital, 4 programs
Control: Amount
MULTI EFFECTS:
8 programs
EQUALIZER:
Bass, Mid, Treble, Tone
INTERNAL LESLIE©:
Advanced Digital, 2 Rotors
Buttons: Bypass, Stop, Fixed
REVERB:
Digital, 11 programs
Control: On, Depth
Leslie On Reverb
MASTER EQUALIZER:
Bass, Mid, Treble
KEYMAP BUTTONS:
Manual Bass, Split
ADJUSTABLE:
Coupler Highest note, Split Point, Octave Up for Lower, Octave Down for Lower, Transpose
PATCHES CAPACITY:
64 User Patches, 64 Preset Patches, manual
FAVORITES:
8 buttons
PATCH LOAD OPTIONS:
Drawbar Registrations, Drawbar Parameters, Internal Zone, External Zone, Effects, Reverb
CONTROLLER'S VOLUMES:
Master Volume
SWITCH:
Power On/Off
STORAGE USB Flash Drive
DISPLAY 20 Characters, 2 Lines
Control Buttons and Value knobs
MIDI TEMPLATES:
8 Templates
EXTERNAL ZONES:
3 Zones, assignable to any keyboard

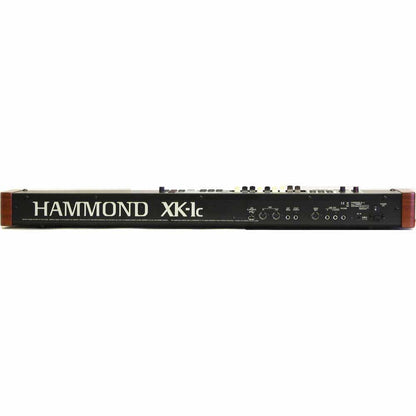

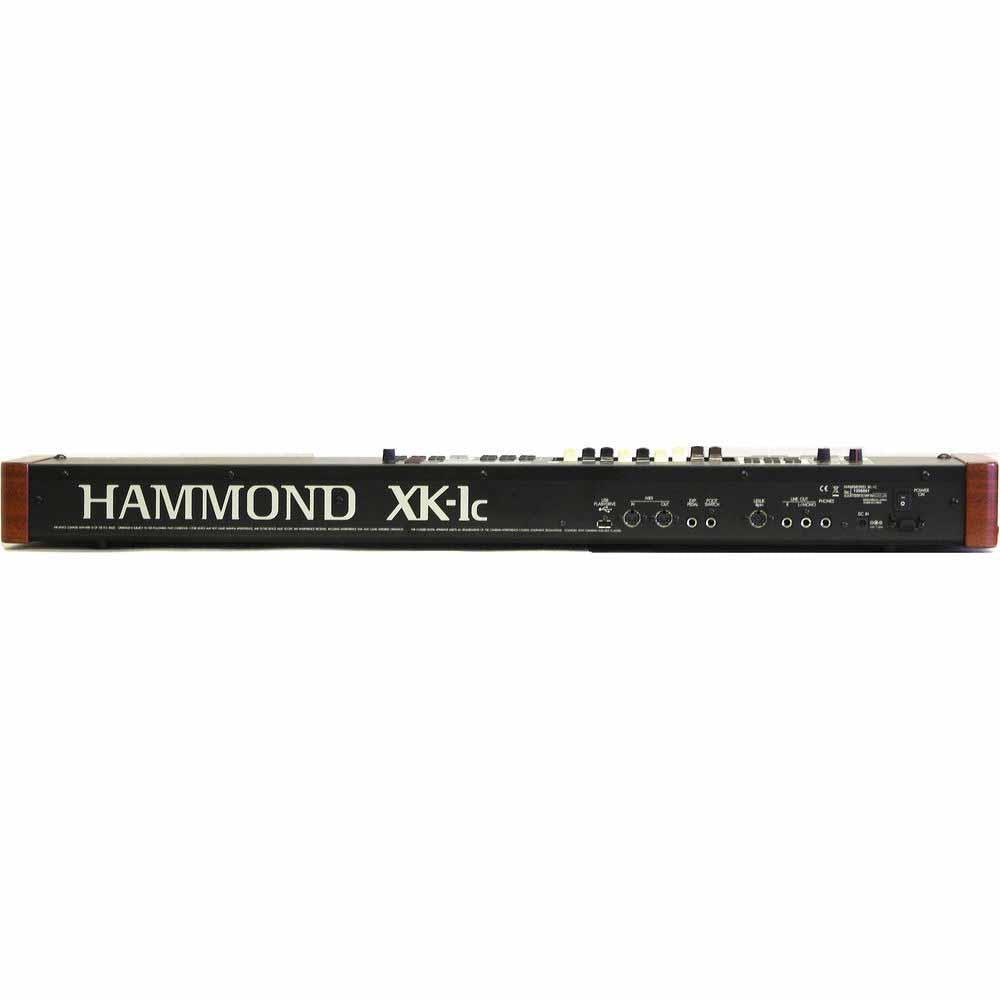

CONNECTIONS MIDI:
In, Out
AUDIO:
Line Out, L, R, Headphones
LESLIE©:
8-pin, 1 and 3 channels available
OTHERS:
Foot Switch, Exp. Pedal, DC IN(12V)
ACCESSORY (INCLUDED) AC Adapter AD3-1250
DIMENSIONS 95.8cm(W) ​​x 30.5cm(D) x 10.1cm(H)
WEIGHT 7.5Kg

Manual available online: English, German, Dutch and French
